GN 614-10-NI Standard Spring Load Stainless Steel Spring Plungers with Ball
  • GN 614-10-NI Standard Spring Load Stainless Steel Spring Plungers with Ball
  • GN 614-10-NI Standard Spring Load Stainless Steel Spring Plungers with Ball
  • GN 614-10-NI Standard Spring Load Stainless Steel Spring Plungers with Ball

GN 614-10-NI Standard Spring Load Stainless Steel Spring Plungers with Ball

$0.30
Also known as spring ball plungers with flat collar.
Body material: stainless steel 303
Ball material: stainless steel 420C
Spring material: stainless steel 631
Inquiry now
More Details

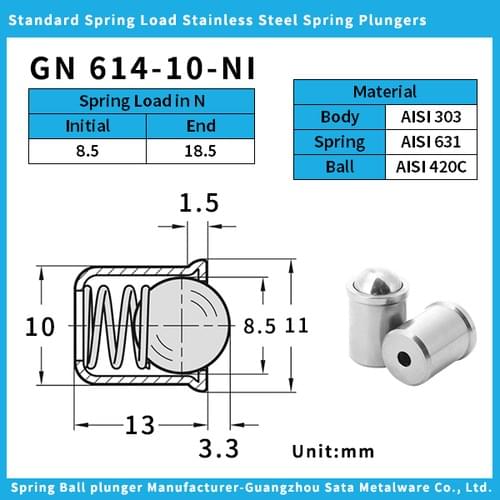

GN 614-10-NI Standard Spring Load Stainless Steel Spring Plungers with Ball

GN 614-10-NI Spring Plungers
Stainless Steel, Press-On Type, Standard Spring Load

Type NI: Stainless steel, standard spring load

Housing: Stainless steel AISI 303, CNC Turning

Ball: Stainless steel AISI 420C,Hardened

Pressure spring: Stainless steel AISI 631

Spring plungers can be used for locating or for applying pressure, as a detent or for ejection.
