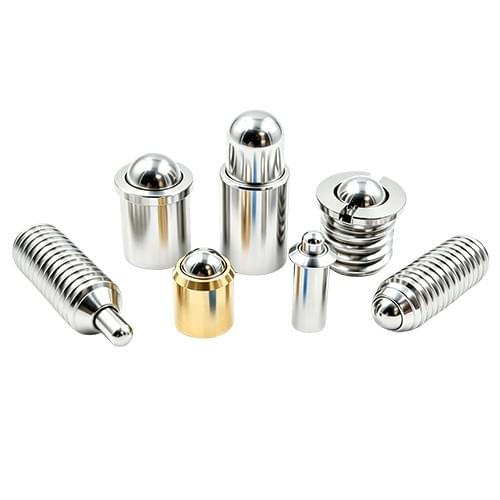

Made In China Spring Loaded Plungers with Pin
with Flat Pin or Rounded Pin
with Collar or withour Collar
Smooth or Threaded (Slotted or Allen Drive)
Metric,Inch
MOQ ≥ 500 Pcs
ISO 9001:2015 & ISO 14001:2015 Certificated
RoHS Compliant
Special types available on request.
Spring loaded force available on request.
Click to download:
Metric Hex Socket Spring Plunger Pins.pdf
Metric Slotted Spring Plungers with Round-Ended Pin.pdf
Inch Slotted Spring Plungers with Round-Ended Pin.pdf
Knurled Press-Fit Spring Plungers with Pin.pdf

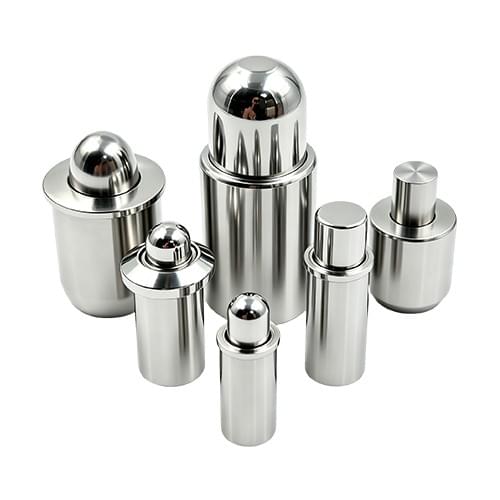

Spring plungers with pin offer a larger spring range than the version with ball. The pins generally have a rounded tip or flat tip. However, a version with a flat front side is also available for distributing force over a larger contact area. These spring plungers are used in particular for securing, applying and releasing pressure, ejecting and cushioning, as well as to compensate for dimensional and manufacturing tolerances.
Depending on the version, pins are available in hardened steel, stainless steel.
Other standard such as GN/EH etc. are available be made according to customer's requirement.
Spring loaded force could be made according to customer's requirement.
For particular applications, special designs can also be designed and manufactured.
